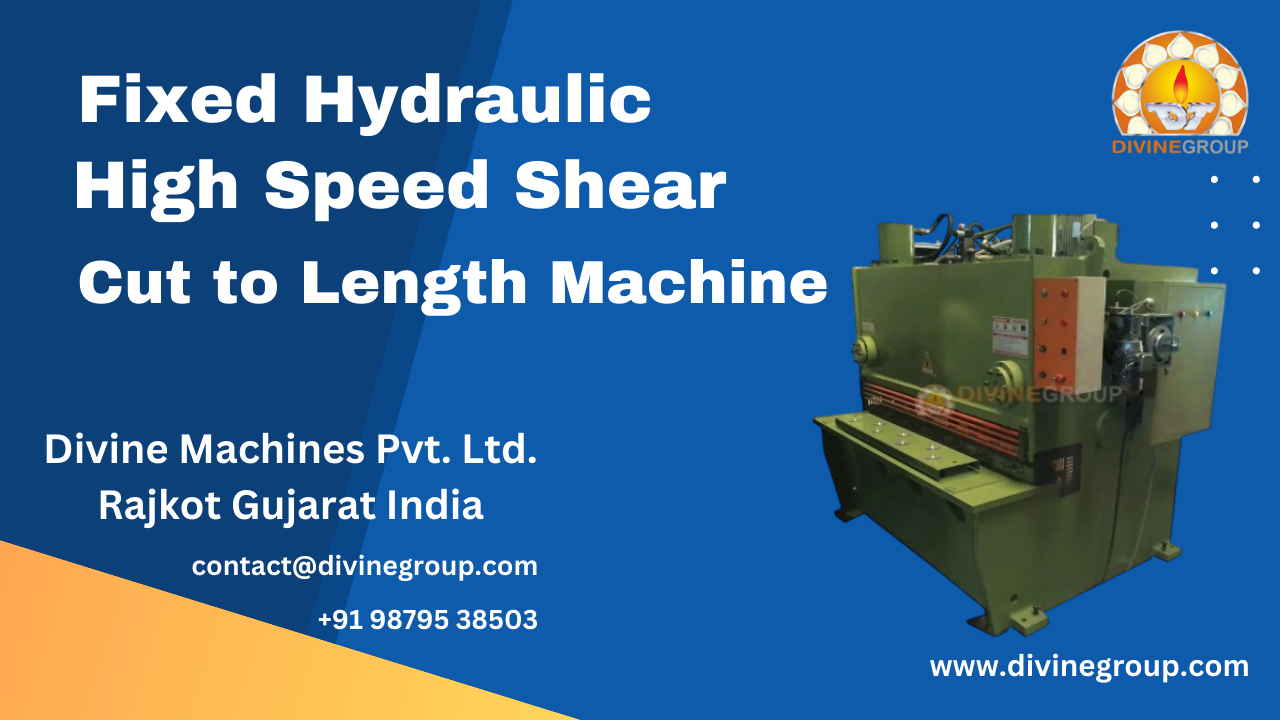

Fixed Hydraulic High-Speed Shear Cut to Length Machine
Fixed Hydraulic High-Speed Shear CTL Machine an industrial metal processing system designed to cut continuously fed metal strip into exact lengths using fixed-position hydraulic guillotine shear. CTL machine combines the high cutting force & smooth operation of hydraulics with high production speed, making it fit for thin to medium-thick materials where clean cut quality & reliability essential. Fixed hydraulic shear CTL machine, Shear unit remains in fixed location, & cutting performed by hydraulic cylinders driving the upper blade against fixed lower blade. Strip may slow down or momentarily stop during cutting, but modern hydraulic systems allow fast response & high cycle rates for efficient production. Characteristics Fixed-position hydraulic guillotine shear High cutting force with smooth blade movement Low vibration and reduced noise Reliable operation for wide material range Suitable for repetitive & variable cut lengths Components Decoiler or Un-coiler Pinch Roll & Straightener or Leveller Length Measuring System Fixed Hydraulic High-Speed Shear Run-out Table or Conveyor Electrical & Hydraulic Control System Working Principle Coil uncoiled & fed through the straightener or leveller Strip moves toward the shear under controlled tension Encoder measures strip length continuously When the preset length is reached, the strip slows or stops momentarily Hydraulic shear descends & cuts the strip cleanly Blade retracts quickly & the strip feed resumes Cut sheets transferred to the run-out table & stacker types Standard Hydraulic Guillotine Shear Swing Beam Hydraulic Shear Applications Steel Service Centers - Sheet preparation & distribution Construction - Roofing & cladding sheets Appliance Manufacturing - Panels & housings General Fabrication - Medium-thickness sheet cutting Automotive Suppliers - Flat blanks & components Electrical Industry - Enclosure & panel blanks
Description
Fixed Hydraulic High-Speed Shear CTL Machine an industrial metal processing system designed to cut continuously fed metal strip into exact lengths using fixed-position hydraulic guillotine shear. CTL machine combines the high cutting force & smooth operation of hydraulics with high production speed, making it fit for thin to medium-thick materials where clean cut quality & reliability essential.
Fixed hydraulic shear CTL machine, Shear unit remains in fixed location, & cutting performed by hydraulic cylinders driving the upper blade against fixed lower blade. Strip may slow down or momentarily stop during cutting, but modern hydraulic systems allow fast response & high cycle rates for efficient production.
Characteristics
Fixed-position hydraulic guillotine shear
High cutting force with smooth blade movement
Low vibration and reduced noise
Reliable operation for wide material range
Suitable for repetitive & variable cut lengths
Components
Decoiler or Un-coiler
Pinch Roll & Straightener or Leveller
Length Measuring System
Fixed Hydraulic High-Speed Shear
Run-out Table or Conveyor
Electrical & Hydraulic Control System
Working Principle
Coil uncoiled & fed through the straightener or leveller
Strip moves toward the shear under controlled tension
Encoder measures strip length continuously
When the preset length is reached, the strip slows or stops momentarily
Hydraulic shear descends & cuts the strip cleanly
Blade retracts quickly & the strip feed resumes
Cut sheets transferred to the run-out table & stacker
types
Standard Hydraulic Guillotine Shear
Swing Beam Hydraulic Shear
Applications
Steel Service Centers - Sheet preparation & distribution
Construction - Roofing & cladding sheets
Appliance Manufacturing - Panels & housings
General Fabrication - Medium-thickness sheet cutting
Automotive Suppliers - Flat blanks & components
Electrical Industry - Enclosure & panel blanks
| HSN Code | 84624900 |
| GST Rate | 18% |
| Min Order Quantity | 1 kilogram |
| Product Color | ["#000000","#800000","#C0C0C0"] |
| Product Unit | kilogram |
| HSN/SAC Code | 84624900 |
