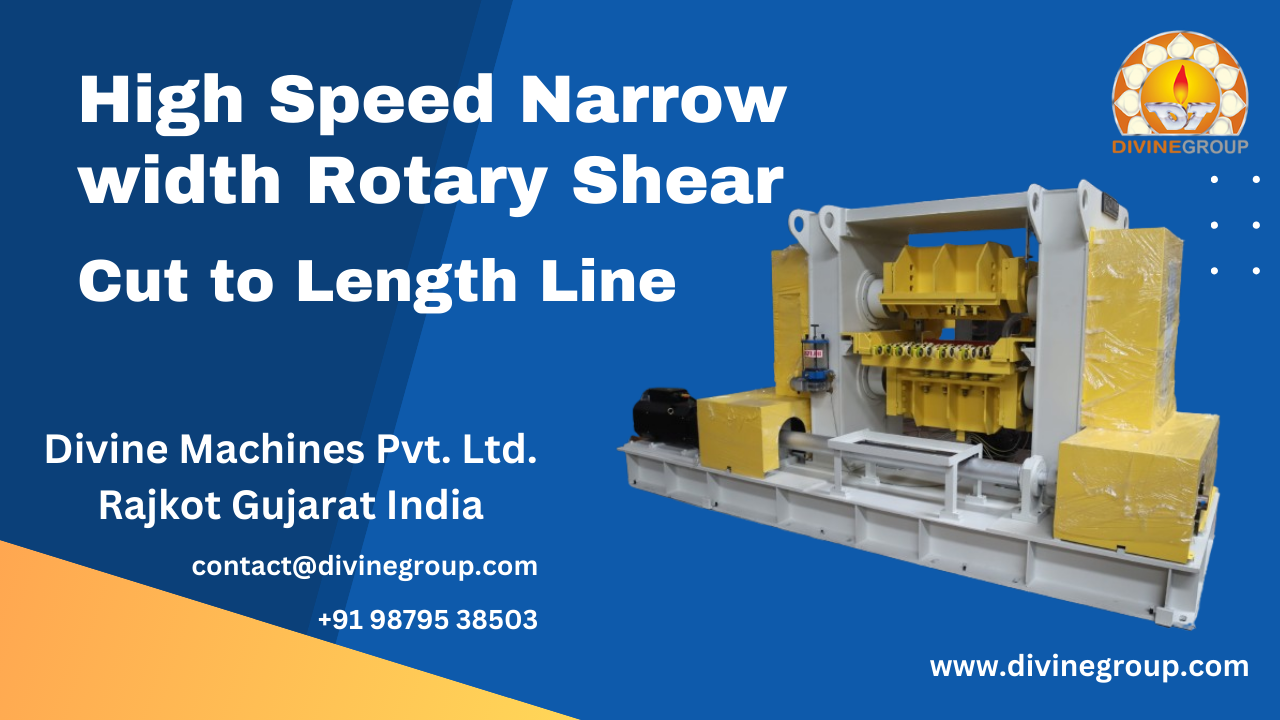

High Speed Narrow width Rotary Shear Cut to Length Machine

High Speed Narrow Width Rotary Shear CTL Machine compact, high-performance metal processing machine designed to straighten, uncoil, measure & cut narrow width metal strips into precise lengths at very high speeds using rotary shear cutting mechanism. Machine ideal for applications requiring continuous high accuracy, cutting, clean edges, & high productivity, especially for thin & narrow coils. Rotary shear CTL machine differs from conventional stop-start shearing systems by using continuously rotating circular blades that cut the moving strip without stopping the line. This allows extremely high cutting speeds, smooth operation & longer tool life. Key Characteristics Designed for narrow-width coils Continuous on-the-fly cutting High-speed, low vibration operation Excellent edge quality & length accuracy Main Components Decoiler or Un-coiler Pinch Roll & Straightener Length Measuring System Rotary Shear Cutting Unit Run-out Table or Conveyor Electrical & Control System Working Principle Coil loaded onto the de-coiler & fed into the straightener Straightened strip moves continuously through the machine Encoder measures the exact strip length in real time Rotary shear blades rotate in synchronization with strip speed Strip is cut on-the-fly at programmed lengths without stopping Cut sheets conveyed & stacked automatically Types of Rotary Shear Systems Single Rotary Shear Double Rotary Shear Applications Electrical Industry - Transformer laminations, narrow CRGO sheets Metal Furniture - Trims and narrow sheet components Appliance Manufacturing - Inner panels & small parts Tubing & Roll Forming - Pre-cut narrow strips Automotive - Precision narrow blanks Solar Industry - Narrow support channels Advantages Very High Production Speed Compact & Efficient Design Low Maintenance Excellent Cut Quality High Accuracy
