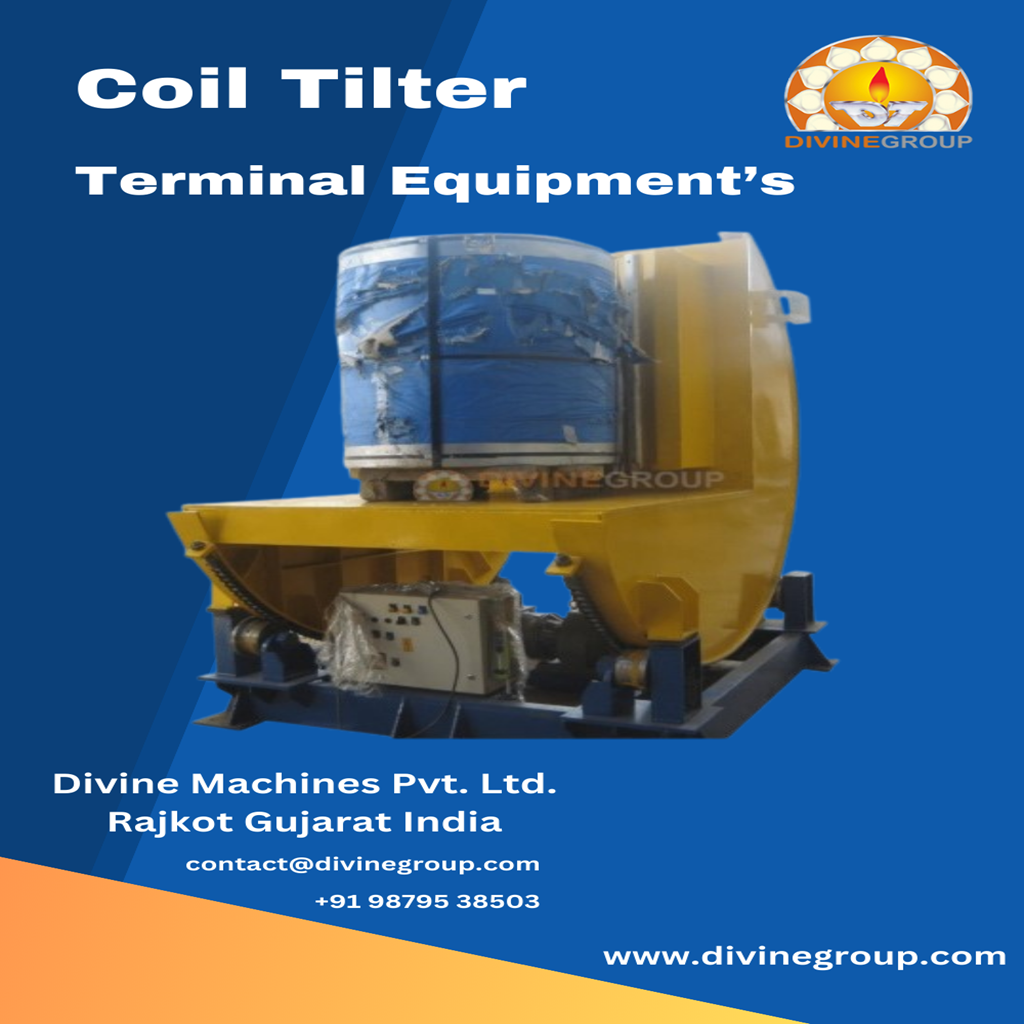

Coil Tilter Terminal Equipment's
Coil Tilter (also known as a Coil Upender) a heavy-duty industrial machine used to tilt metal coils between horizontal & vertical positions. It’s crucial part of coil handling systems in steel processing industries, efficient, ensuring safe & damage-free handling of heavy coils. Main Functions Tilt coils from eye to sky (horizontal) to eye to wall (vertical) position & vice versa Prepare coils for loading onto de-coilers, slitters, or storage racks Reduce manual handling & improve safety Ensure proper coil orientation for different processing stages Working Principle Coil placed on the tilter platform (cradle) Machine uses a hydraulic or motorized system to rotate the platform The platform tilts (usually 90° or 180° depending on design) Coil is safely transferred to the desired position System ensures controlled & smooth tilting motion Types of Coil Tilter Hydraulic Pit Mounted Floor Mounted Motorized (Electro-Mechanical) Components Hydraulic System or Drive System: Provides tilting motion Power Pack: Hydraulic pump, motor, valves Control Panel: Manual or PLC-based controls Tilting Platform Cradle: Holds the coil securely Main Frame Heavy duty steel structure Safety Guards Protect operator during operation Limit Switches & Sensors: Control movement & positioning Applications Steel & metal processing plants Coil slitting lines Cut to length lines Roll forming industries Warehouses & coil storage areas Automotive & sheet metal industries Advantages Suitable for continuous production environments Prevents coil damage during tilting Reduces manpower requirement Improves workflow efficiency Safe handling of heavy coils Coil tilter is used to change orientation of coil from vertical to horizontal or vice versa for storage or processing purpose.
Description
Coil Tilter (also known as a Coil Upender) a heavy-duty industrial machine used to tilt metal coils between horizontal & vertical positions. It’s crucial part of coil handling systems in steel processing industries, efficient, ensuring safe & damage-free handling of heavy coils.
Main Functions
Tilt coils from eye to sky (horizontal) to eye to wall (vertical) position & vice versa
Prepare coils for loading onto de-coilers, slitters, or storage racks
Reduce manual handling & improve safety
Ensure proper coil orientation for different processing stages
Working Principle
Coil placed on the tilter platform (cradle)
Machine uses a hydraulic or motorized system to rotate the platform
The platform tilts (usually 90° or 180° depending on design)
Coil is safely transferred to the desired position
System ensures controlled & smooth tilting motion
Types of Coil Tilter
Hydraulic
Pit Mounted
Floor Mounted
Motorized (Electro-Mechanical)
Components
Hydraulic System or Drive System: Provides tilting motion
Power Pack: Hydraulic pump, motor, valves
Control Panel: Manual or PLC-based controls
Tilting Platform Cradle: Holds the coil securely
Main Frame Heavy duty steel structure
Safety Guards Protect operator during operation
Limit Switches & Sensors: Control movement & positioning
Applications
Steel & metal processing plants
Coil slitting lines
Cut to length lines
Roll forming industries
Warehouses & coil storage areas
Automotive & sheet metal industries
Advantages
Suitable for continuous production environments
Prevents coil damage during tilting
Reduces manpower requirement
Improves workflow efficiency
Safe handling of heavy coils
Coil tilter is used to change orientation of coil from vertical to horizontal or vice versa for storage or processing purpose.
| HSN Code | 84624990 |
| GST Rate | 18% |
| Min Order Quantity | 1 kilogram |
| Product Color | ["#000000","#0000FF","#FFFFFF","#FFFF00","#800000","#C0C0C0"] |
| Product Unit | kilogram |
| HSN/SAC Code | 84624990 |
Divine Machines Pvt Ltd
Divine Machines Pvt Ltd is a pioneer in india in the field of manufacturing commission coil processing lines and an ISO 9001:2015 certified company. Dedicated to quality, consistency, and innovation, we aim to achieve excellence and perfection by designing, manufacturing and commissioning our superior quality coil processing lines at cost-effective prices. Since last 25 years we have track record of design, fabricate & commissioning of 350 lines in India as well as exported to various countries like Turkey, Spain, Syria, Cyprus, Nigeria, Iran, Bahrain, U. K, Russia & Dubai etc. countries. We are most sophisticated and professionally managed Group Since 1975 our activities are spread in trading of various workshop machinery's, designing, manufacturing & commissioning of coil processing lines and designing & manufacturing cold roll formed profiles and exports. We started manufacturing unit in 1989. At present, more than 350 different types of coil processing lines are running successfully in India & abroad and have become profit centre for our valued buyers. We at DIVINE, are engaged in Designing, Manufacturing & Commissioning of Coil Processing Lines like: Roll Forming Line Loop type Cut to Length Line CRGO Slitting Line Rotary Oscillating Shear Cut to Length Line Copper & Brass Slitting Line Double Loop type Slitting Line Cold Roll Formed Profiles Terminal equipment’s for processing line like Colour Color coating Line, Galvanizing Line, Annealing Line & Pickling Line
| Business Type | : Manufacturer |
| Location | : Rajkot, Gujarat |
| Year Established | : None |
| Total Employees | : 51 to 100 employees |
| Website | : https://divinegroup.com/ |
