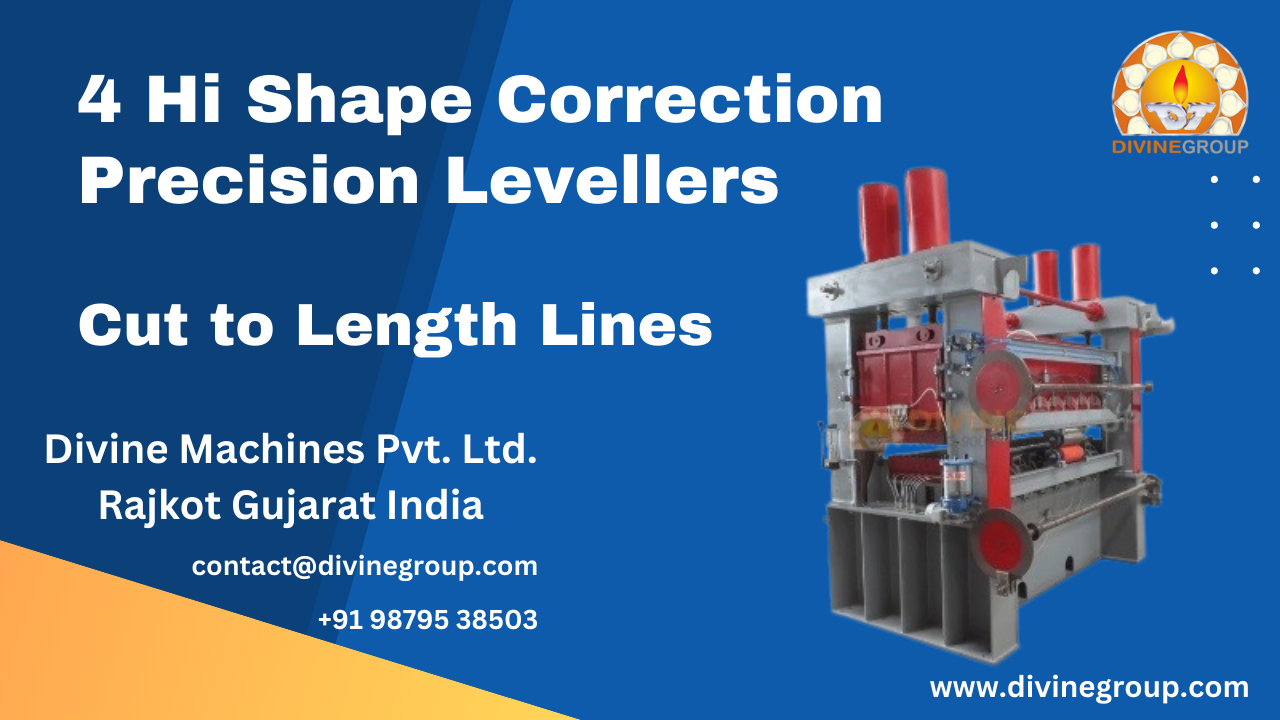

4 HI Shape Correction Precision Leveller Cut to Length Machine
4 HI Shape Correction Precision Levellers Cut to Length Machine CTL is designed to straighten & cut metal sheets to precise lengths. It’s commonly used in industries that require flat, accurate sheets of metal, such as appliance manufacturing,, automotive & metal service centers. The machine uses 4-high (4 HI) roll arrangement for precise leveling and correction of metal sheet shape defects like buckles and flatness errors. 4 HI Shape Correction Precision Leveller advanced metal processing unit designed to eliminate coil-set, crossbow, & edge wave in metal coils before cutting. Integrated into Cut to Length Lines CTL, this leveller delivers high flatness accuracy for sheet metal applications in construction, electrical, automotive, appliance & panel fabrication industries. Key Features Advanced shape correction for coil defects like coil-set & edge wave, PLC + HMI based control system for easy operation and monitoring, Small diameter work rolls for deep penetration & accuracy, Motorized gap and pressure adjustment for material thickness variation, 4 HI configuration with backup rolls for improved roll rigidity, Heavy duty, high-precision structure, Integrated into fully automated cut to length lines, Applications areas Automotive Sheet Metal Production, body panel blanking, Appliance Manufacturing, HVAC Systems, Metal Service Centers, Electrical control panel sheets, Construction Materials, Pre-engineered buildings & structural steel, Precision blank cutting for fabrication, Unique Features Precision Equipment to reduce coil edge waviness, center buckle, slight cross bow or crowning, Individually adjustable rows of back up rolls fleet with software control, Suitable for Cold Rolled finished products,
Description
4 HI Shape Correction Precision Levellers Cut to Length Machine CTL is designed to straighten & cut metal sheets to precise lengths. It’s commonly used in industries that require flat, accurate sheets of metal, such as appliance manufacturing,, automotive & metal service centers.
The machine uses 4-high (4 HI) roll arrangement for precise leveling and correction of metal sheet shape defects like buckles and flatness errors. 4 HI Shape Correction Precision Leveller advanced metal processing unit designed to eliminate coil-set, crossbow, & edge wave in metal coils before cutting.
Integrated into Cut to Length Lines CTL, this leveller delivers high flatness accuracy for sheet metal applications in construction, electrical, automotive, appliance & panel fabrication industries.
Key Features
Advanced shape correction for coil defects like coil-set & edge wave,
PLC + HMI based control system for easy operation and monitoring,
Small diameter work rolls for deep penetration & accuracy,
Motorized gap and pressure adjustment for material thickness variation,
4 HI configuration with backup rolls for improved roll rigidity,
Heavy duty, high-precision structure,
Integrated into fully automated cut to length lines,
Applications areas
Automotive Sheet Metal Production, body panel blanking,
Appliance Manufacturing,
HVAC Systems,
Metal Service Centers,
Electrical control panel sheets,
Construction Materials,
Pre-engineered buildings & structural steel,
Precision blank cutting for fabrication,
Unique Features
Precision Equipment to reduce coil edge waviness, center buckle, slight cross bow or crowning,
Individually adjustable rows of back up rolls fleet with software control,
Suitable for Cold Rolled finished products,
| HSN Code | 84624900 |
| GST Rate | 18% |
| Min Order Quantity | 1 kilogram |
| Product Color | ["#000000","#FFFFFF","#C0C0C0"] |
| Product Unit | kilogram |
| HSN/SAC Code | 84624900 |
